Overview

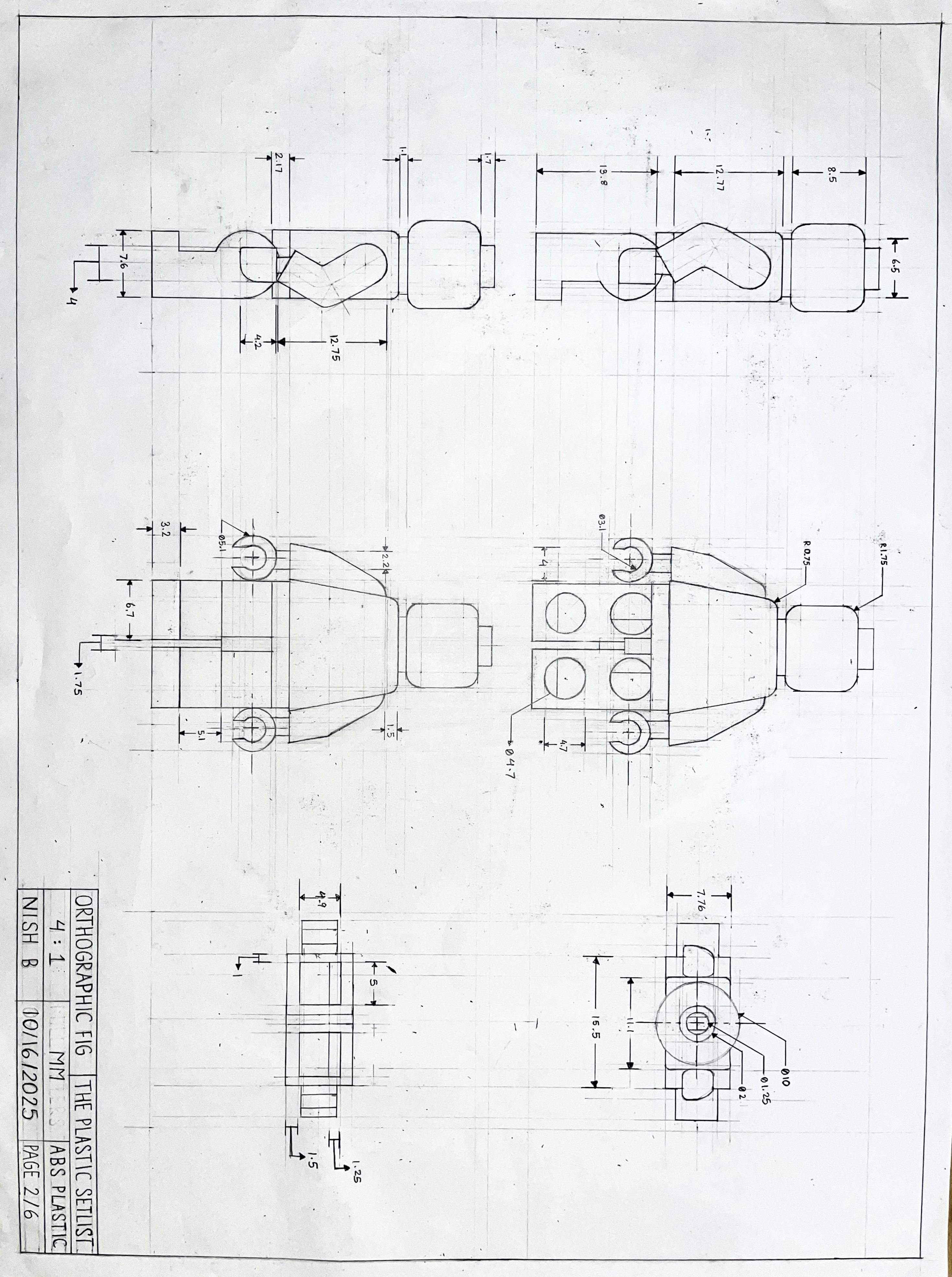

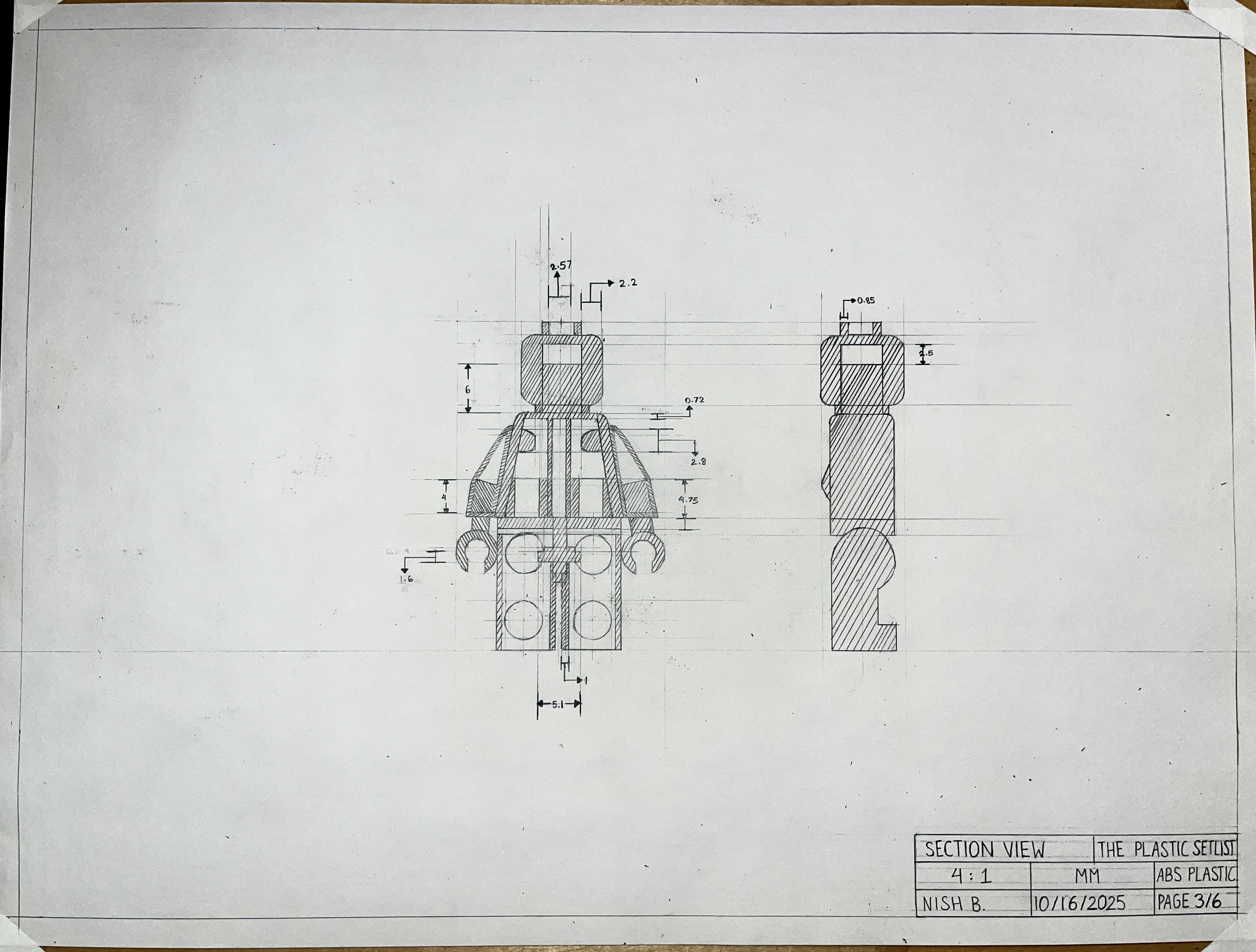

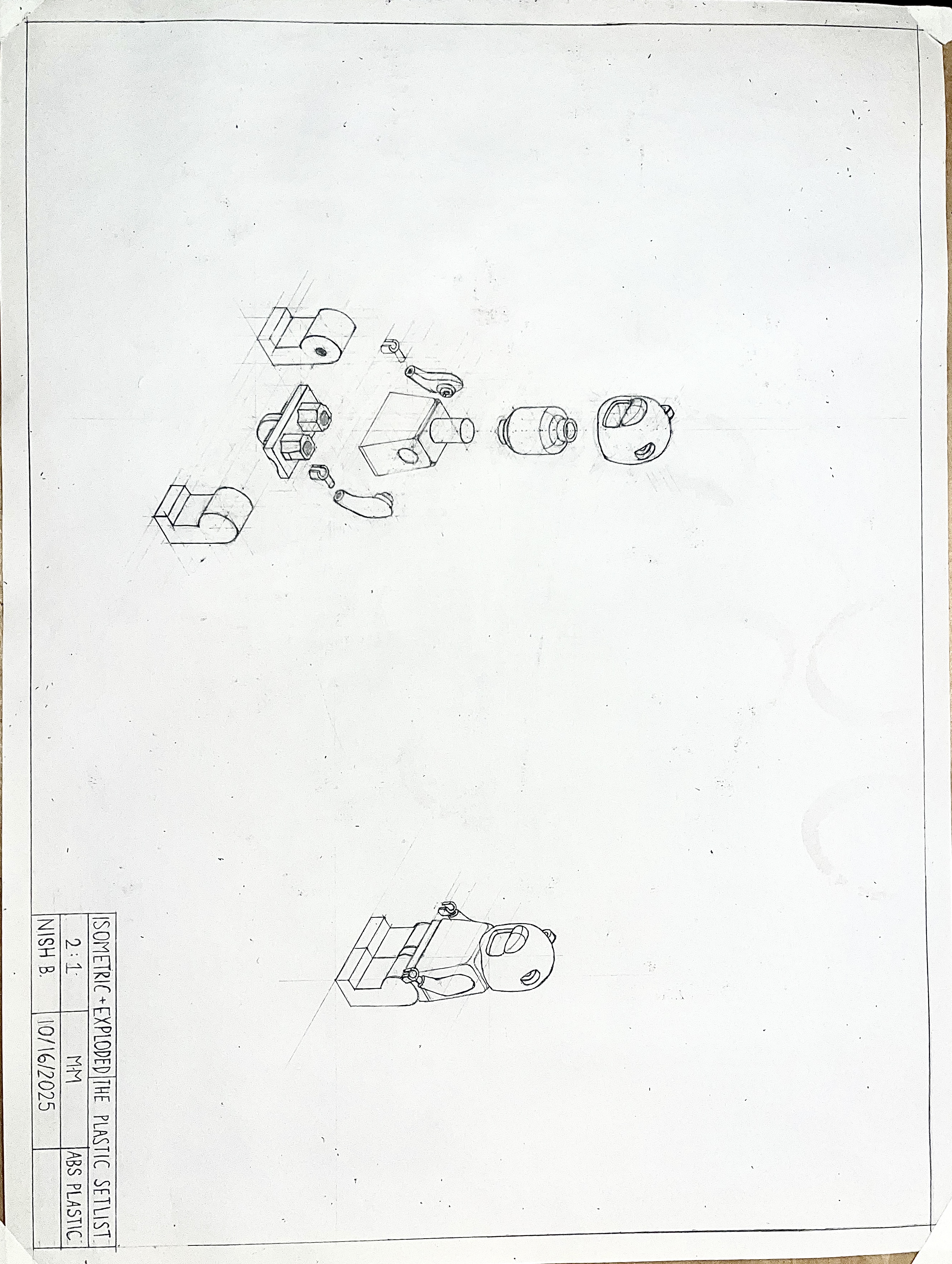

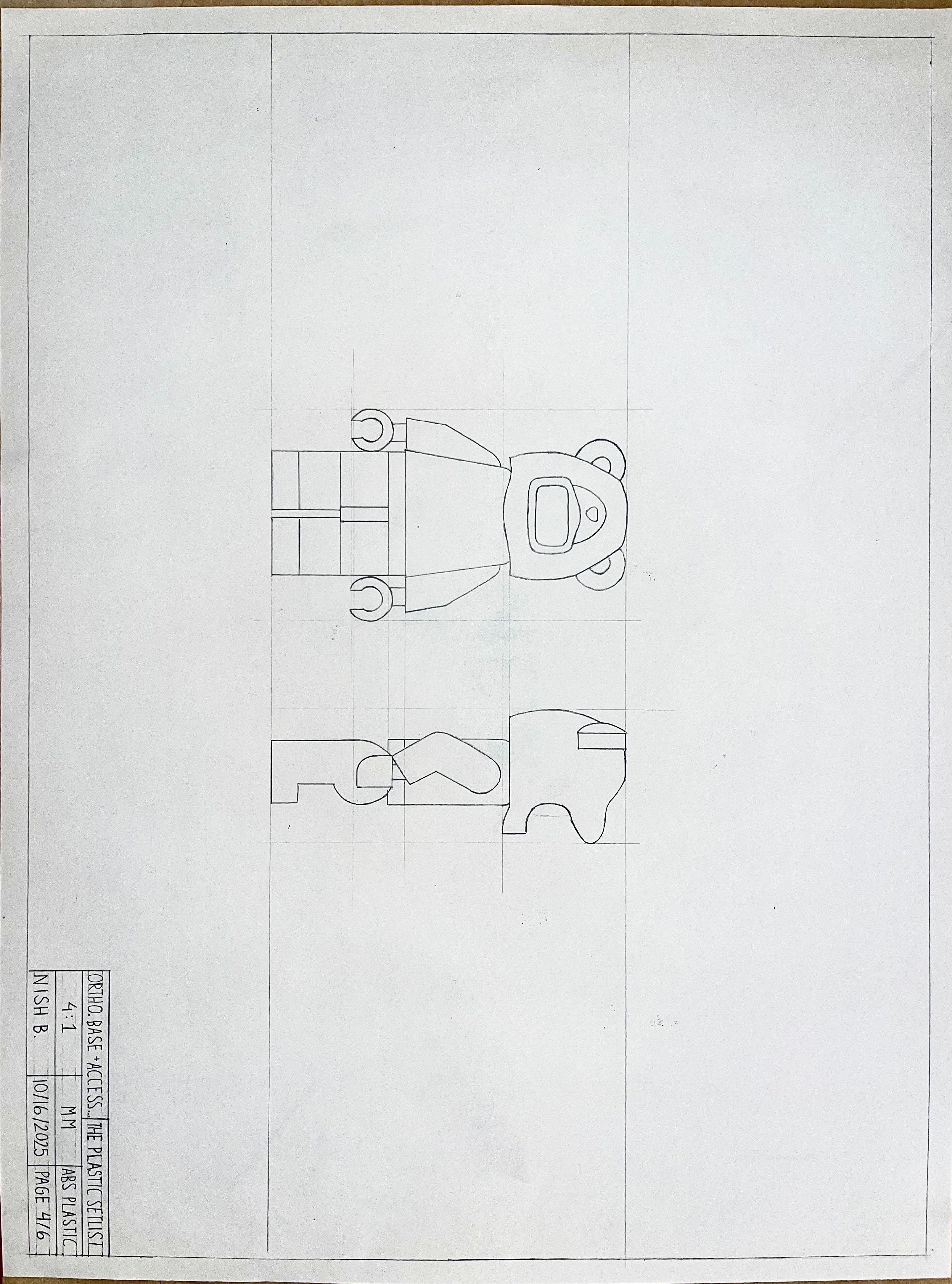

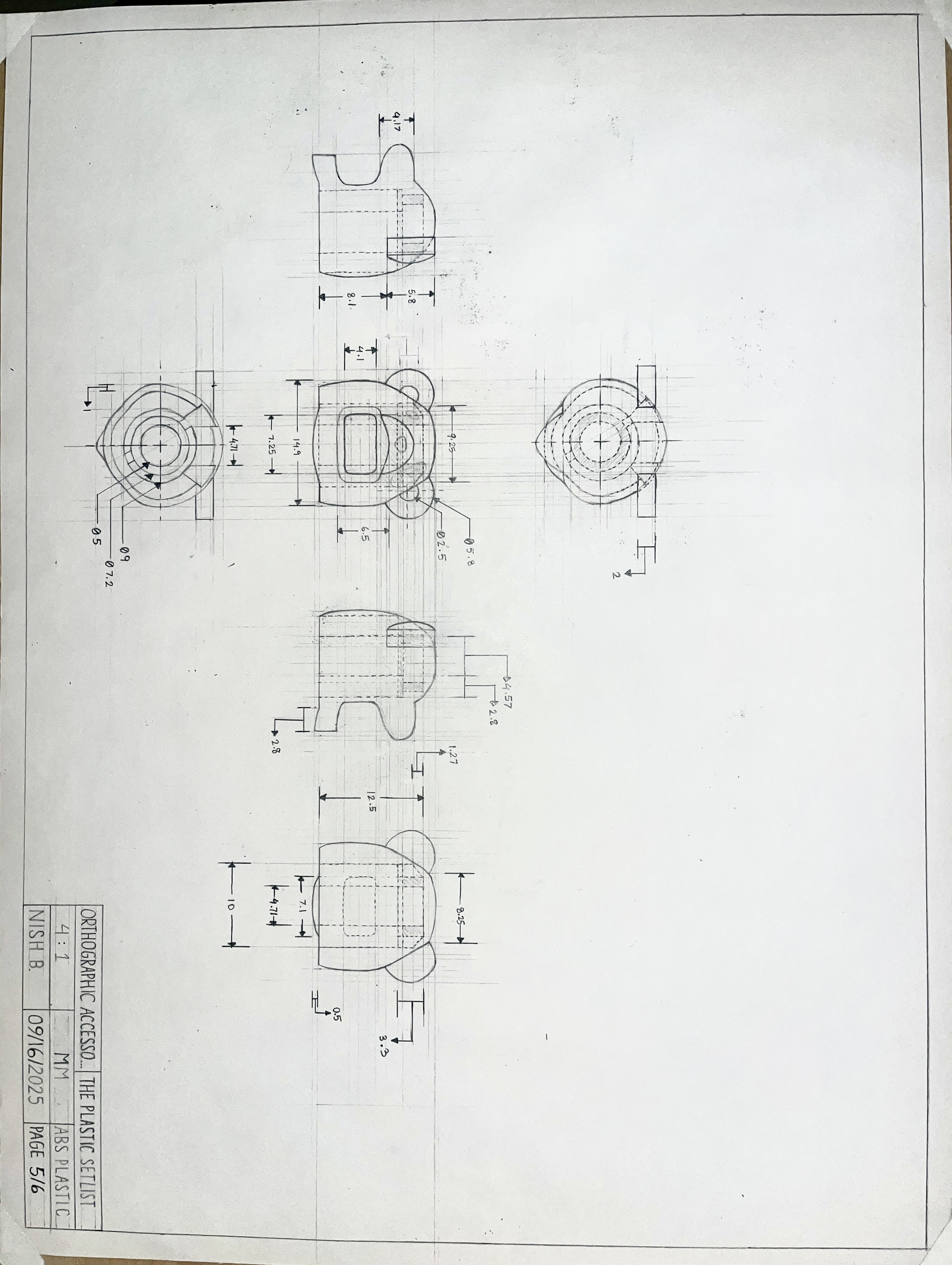

For this project, I measured and drafted a custom LEGO minifigure by hand, creating a full set of technical drawings based on the original object. I spent time carefully measuring each part of the figure and translating those dimensions into orthographic, section, isometric, and exploded views for the figure and its main accessory, paying close attention to how the different pieces relate to one another.
